Siletta Discharger - Technical and Dimensional information.
The Siletta Discharger effectively provides mass flow of bulk solids (Siletta live bin bottom feeder) or powders from bulk storage silos and bins, storage hoppers and stockpiles. Proven worldwide as a cost effective solids flow control device, the Siletta discharger is a highly effective solids flow control valve which provides better mass flow control than bin activators, and saving energy by eliminating the need for screw feeders or belt feeders.
The Siletta Discharger is pre-assembled, and is easily retrofitted to existing storage silos, hoppers and stockpile reclaim systems, as well as suitable for new bulk storage facilities.
|
Siletta® Multi-Function Feeder
|
|
Type - RM for raw materials in mining and process industries, and high rate of flow. Handles lumps up to 200 mm.
|
Simultaneous discharge over the entire outlet area.
- Live bottom
- Trimming valve
- Shut off valve
- For outlets:
- square
- circular
- rectangular
- Adjustable rate of flow 1:1000
- Abrasion resistant
- No maintenance
- Heavy design
- Mild steel, stainless steel
- For free flowing powders
- For cohesive powders
- For handling lumps
Suitable for:-
Square, Circular or Rectangular Outlets.
On request:-
Design for Sanitary, adjustable louver, and special dimensions.
|
|
Type ST - standard type for application in process and storage silos. Ideal discharge device for proportioning silos. Wide range of standard sizes.
|
|
Type UBL for universal application with small and large silos. Special application for ideal flow silos and for redesign of existing silos
|
|
Standard types and dimensions
|
|
Type
|
Minimum size (mm)
|
Maximum size (mm)
|
Maximum lump size (mm)
|
|
ST
|
200
|
1200
|
40
|
|
RM
|
800
|
1600
|
200
|
|
UBL
|
1500
|
4500
|
100
|
|
Other dimensions are available upon request
|
|
Standard SILETTA® - Model ST
|
|
|
Suitable for:-
Square, Circular or Rectangular Outlets.
On request:-
Design for Sanitary, adjustable louver, and special dimensions.
|
|
Standard and dimensions
|
|
Model ST
|
A
|
D1
|
B
|
d
|
H1
|
H2*
|
D2*
|
LK
|
E1**
|
E2**
|
Mass
|
|
Size
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
kg
|
|
200
|
450
|
200
|
100
|
10
|
180
|
-
|
-
|
400
|
485
|
-
|
25
|
|
400
|
650
|
400
|
100
|
10
|
180
|
225
|
200
|
600
|
614
|
690
|
75
|
|
600
|
850
|
600
|
100
|
10
|
180
|
325
|
200
|
800
|
728
|
885
|
100
|
|
800
|
1050
|
800
|
100
|
14
|
300
|
425
|
200
|
1000
|
942
|
1015
|
200
|
|
1200
|
1450
|
1200
|
100
|
14
|
300
|
625
|
200
|
1400
|
1211
|
1215
|
300
|
|
* Option – Other dimensions upon request.
** E1 – With Electromagnetic Vibrator.
*** E2 – With Unbalanced Drive.
|
|
Raw Materials - SILETTA®Model RM
|
|
|
Siletta Multi - Function Feeder for Raw Materials
- Adjustable rate of flow.
- Abrasion Resistant.
- Low Maintenance.
- Heavy Duty Design.
- Handles Lumps up to 200mm.
- Instantaneous Shut Off – 1 second.
- Fine Trimming Valve.
- Manufacture in Mild Steel and Stainless Steel
Special sizes are available on request.
|
|
Standard and dimensions
|
|
Model RM
|
Rate of Flow
|
A
|
B
|
C
|
D
|
E
|
F
|
|
Size
|
m3/hr
|
mm
|
mm
|
mm
|
mm
|
mm
|
mm
|
|
800
|
260
|
1200
|
800
|
1300
|
1300
|
10 x 125
|
400
|
|
1200
|
800
|
1600
|
1200
|
1600
|
1700
|
10 x 185
|
600
|
|
1600
|
1500
|
2000
|
1600
|
2000
|
2200
|
10 x 215
|
900
|
|
Siletta Intermediate Bulk Containers (IBC’s)
Both Intermediate Bulk Container (IBC) models are suitable for free flowing and cohesive powders.
The Siletta discharger is used to control product flow out of the Intermediate Bulk Container.
Dust free operation.
Suitable for Pharmaceutical, Food and Chemical industries.
|
|
SILCON ST
Stackable mobile Intermediate Bulk Container
|

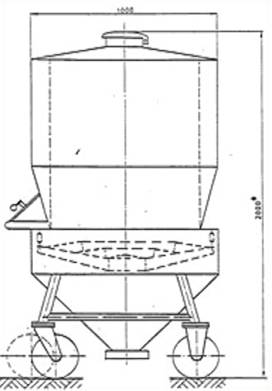

SILCON TR
Wheel mounted Intermediate Bulk Container
|
|
